Titanic Wreck, Stern Section (Circa 1986) Machinery Detail 02 - Low Pressure Turbine.
These images show the Titanic's Low Pressure Turbine engine. This engine drove the central propellor, the smallest of Titanic's 3 props. Unlike the Reciprocating engines, which are fairly accessible to ROV's, the Turbine engine room has proven to be largely inaccessible. As a result, this part of the model is mostly speculative. I was able to find photographic reference of the Turbine for Titanic's sister ship - Britannic - it was identical to Titanic's turbine - under construction but nothing which gave a clear indication, to me at any rate, of how the fully assembled engine looked. So - while I have tried to be as accurate with this engine and engine room as possible, it is likely that there are plenty of errors.

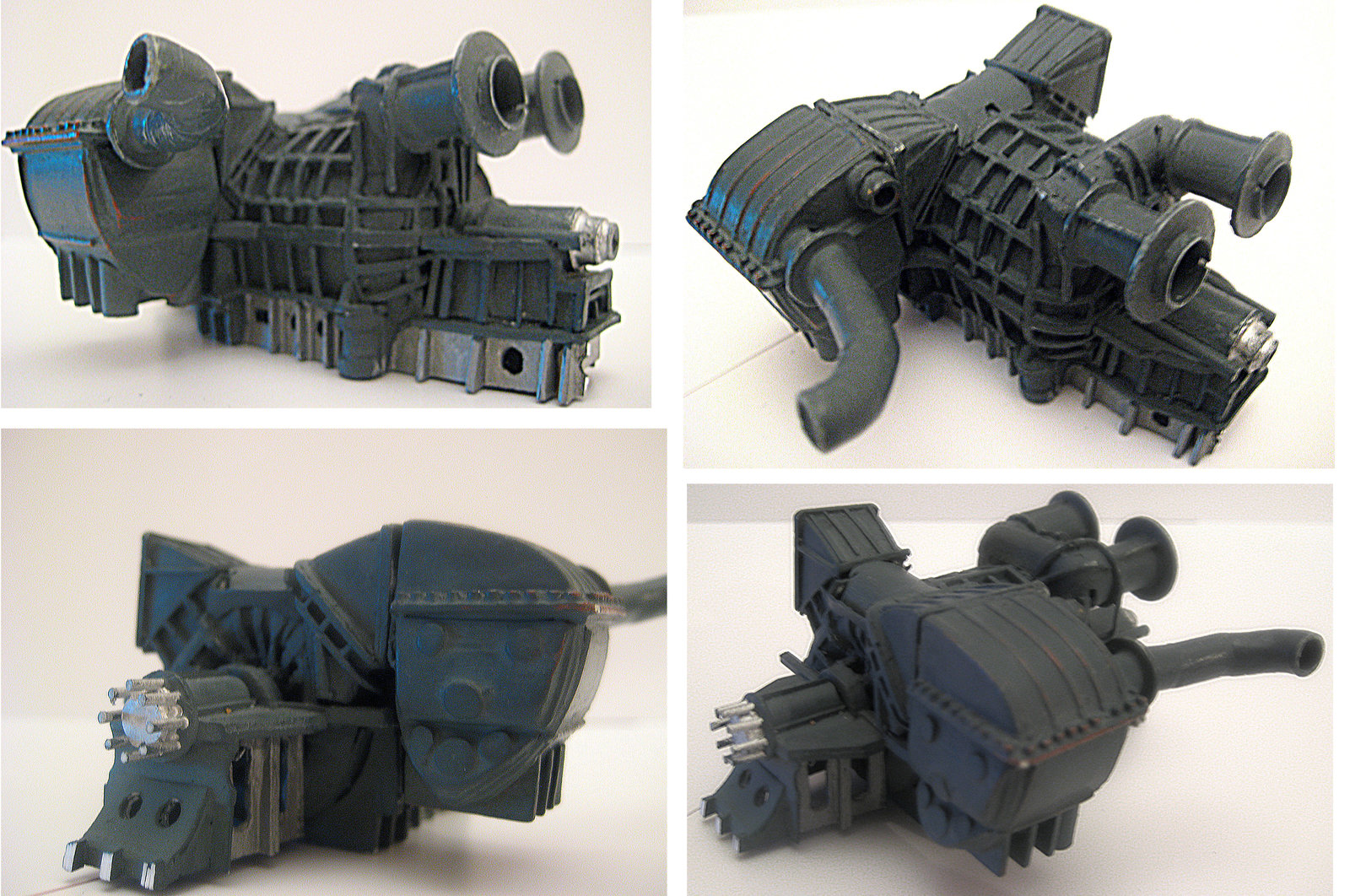

Turbine Engine Starboard view. The large barrel like object on one side is the starboard condenser.
Turbine Engine Port view.

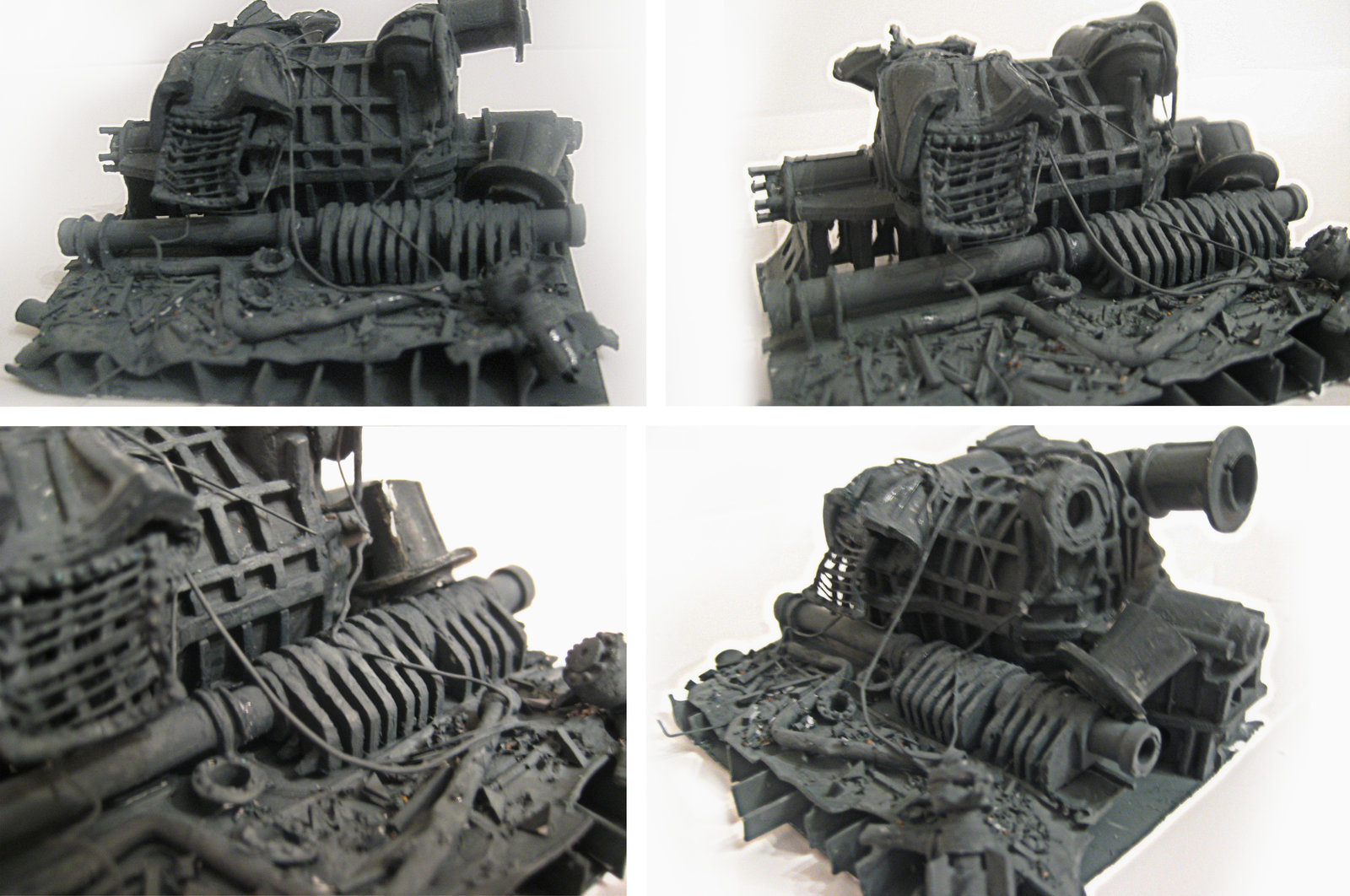

Turbine engine on its bedplates with wreckage applied. The Thrust block for the starboard wing Prop is visible at its base.
Turbine engine on its bedplates with wreckage applied 02.
Turbine engine on its bedplates with wreckage applied 03.
Turbine engine on its bedplates with wreckage and Rusticles applied 01.

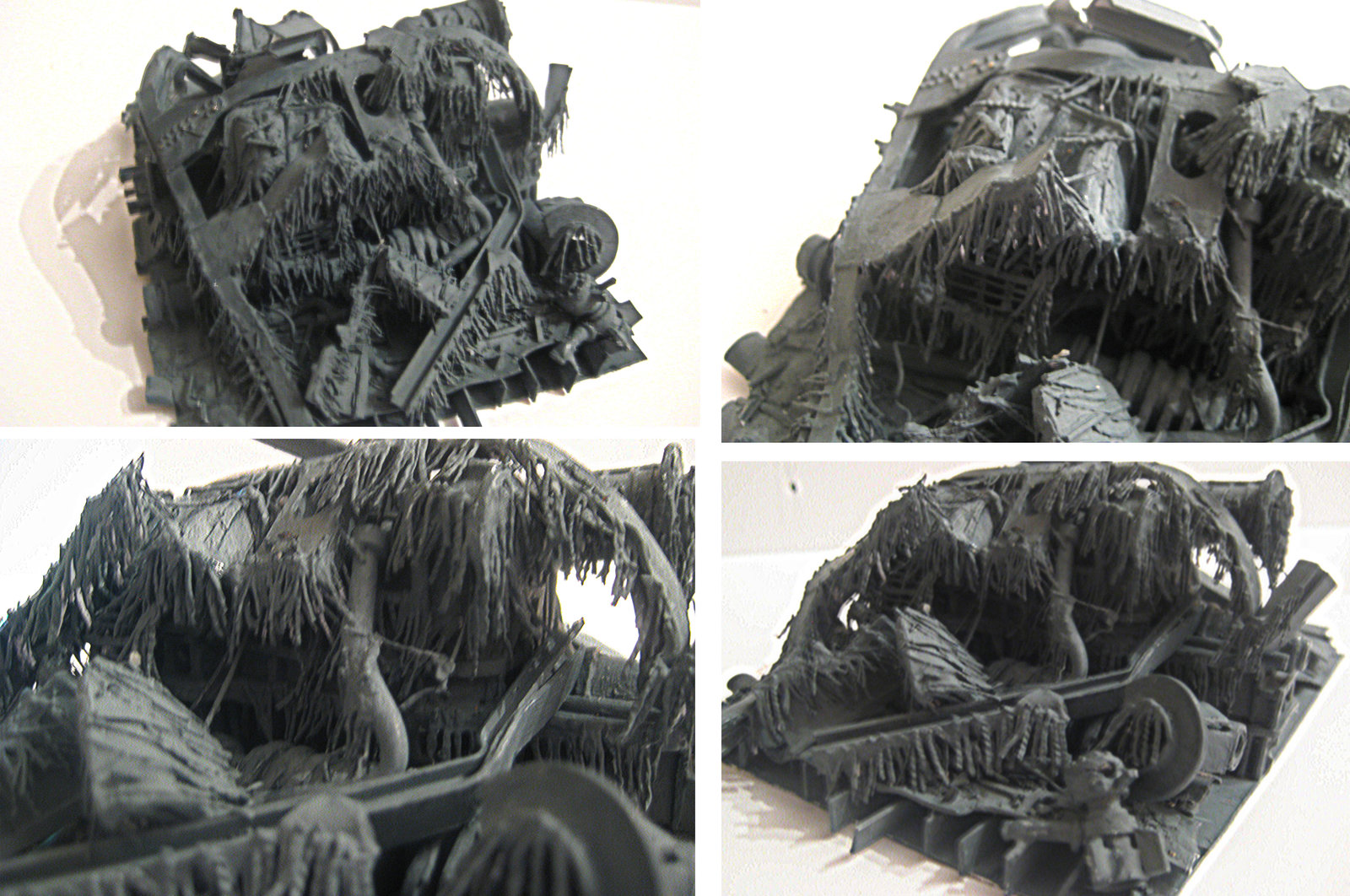

Turbine engine on its bedplates with wreckage and Rusticles applied 02.
Turbine engine on its bedplates with wreckage and Rusticles applied and rust effects added 01.

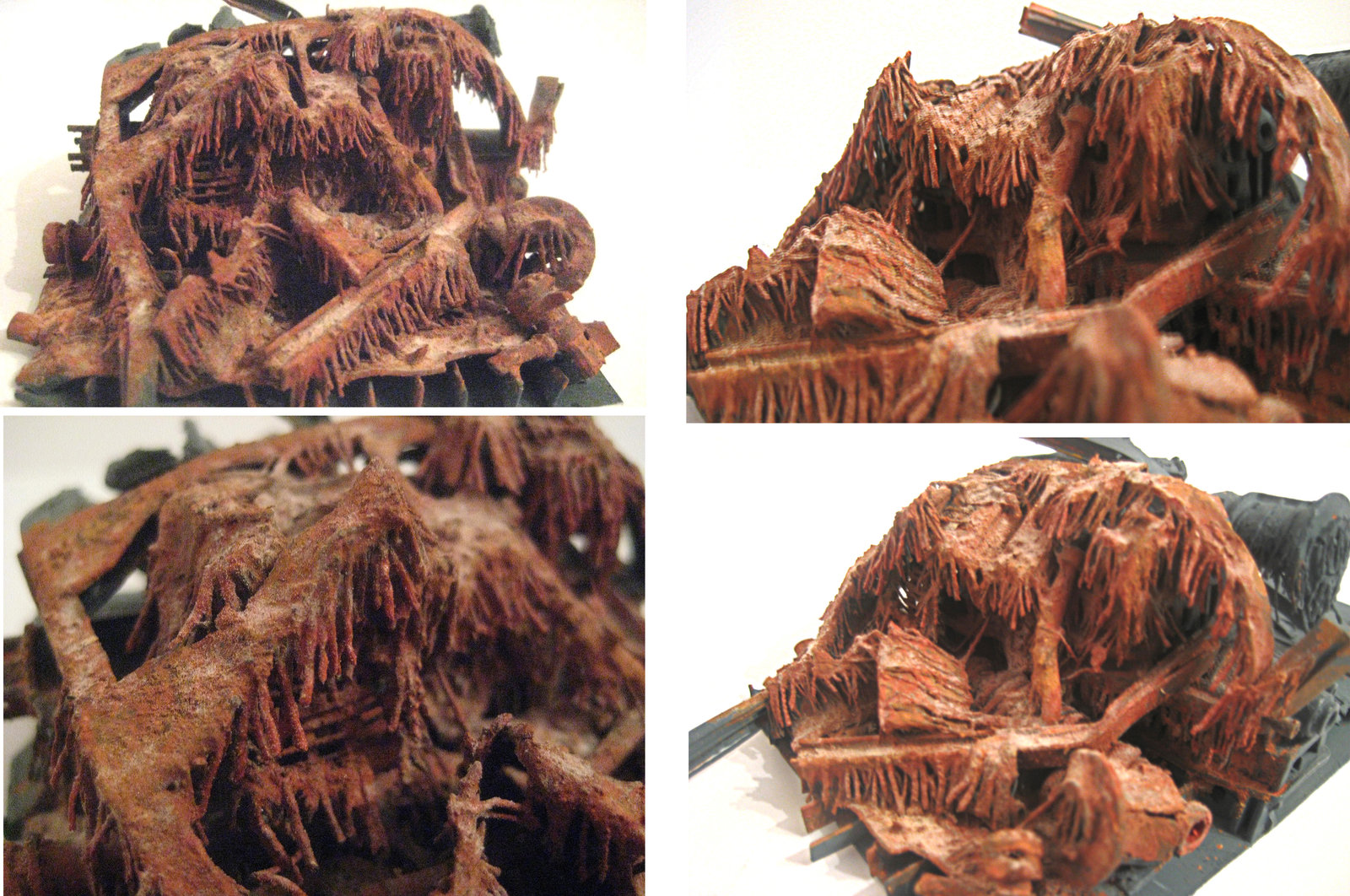

Turbine engine on its bedplates with wreckage and Rusticles applied and rust effects added 02.
